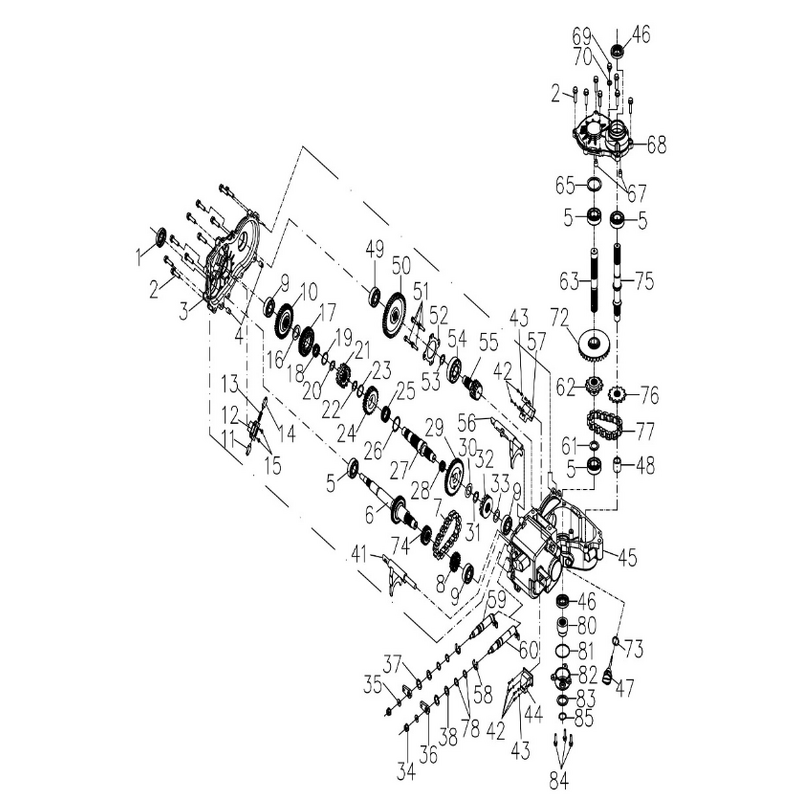

11 TRANSMISSION (FOR 4WD)
Components
GEAR INDICATOR SWITCH WASHER
86-GEAR
Sold Out Qty 2 included$3.00
BOLT M8X28
10060
Sold Out Qty 17 included$3.00
MAIN COVER(USE WITH HIGH-POWER CLUTCH)
21203B
Sold Out Qty 1 included$142.00
BEARING 6205c3
10061
Sold Out Qty 4 included$11.00
INPUT SHAFT(USE WITH HIGH-POWER CLUTCH)
21206B
Sold Out Qty 1 included$136.00
CHAIN
21207
Sold Out Qty 1 included$103.00
GEAR 16T
21208
Sold Out Qty 1 included$64.00
BEAR 6204
10062
Sold Out Qty 3 included$9.00
GEAR,HELICAL 35T
21210
Sold Out Qty 1 included$80.00
INTERLOCK BRACKET
21212
Sold Out Qty 1 included$4.00
SPRING
21213
Sold Out Qty 1 included$3.00
INTERLOCK PIN
21211
Sold Out Qty 1 included$7.00
SCREW M5X12
10001
Sold Out Qty 2 included$3.00
SPACER
21216
Sold Out Qty 1 included$3.00
GEAR 31T
21217
Sold Out Qty 1 included$74.00
THRUST WASHER
21219
Sold Out Qty 1 included$3.00
DOG GEAR
21221
Sold Out Qty 1 included$28.00
SNAP RING
10065
Sold Out Qty 1 included$3.00
SPROCKET 24T
21224
Sold Out Qty 1 included$92.00
NEEDLE BEARING 25
21225
Sold Out Qty 1 included$8.00
SHAFT
21327
Sold Out Qty 1 included$103.00
NEEDLE BEARING 25
21218
Sold Out Qty 1 included$10.00
GEAR 35T
21329
Sold Out Qty 1 included$76.00
THRUST WASHER
21223
Sold Out Qty 1 included$3.00
SNAP RING
10064
Sold Out Qty 1 included$3.00
ENGAGEMENT
21332
Sold Out Qty 1 included$58.00
THRST WASHER
21333
Sold Out Qty 1 included$3.00
NUT M8
10067
Sold Out Qty 2 included$3.00
WASHER 8
10068
Sold Out Qty 2 included$3.00
BELLCRANK
21336
Sold Out Qty 2 included$6.00
SNAP RING
10069
Sold Out Qty 2 included$3.00
WASHER
21338
Sold Out Qty 2 included$3.00
VENT TUBE
21339
Sold Out Qty 1 included$4.00
VENT TUBE FITTING
21340
Sold Out Qty 1 included$4.00
SHIFT FORK HIGH/REVERSE
21341
Sold Out Qty 1 included$110.00
SCREW M4
10007
Sold Out Qty 8 included$3.00
WASHER 4
10071
Sold Out Qty 8 included$3.00
GEAR INDICATOR SWITCH
21344
Sold Out Qty 1 included$127.00
GEARCASE,RH(USE WITH SPEED SENSOR)
21345B
Sold Out Qty 1 included$368.00
SEAL 25X47X8
21201
Sold Out Qty 1 included$3.00
DIPSTICK
21475
Sold Out Qty 1 included$5.00
BUSHING
10219
Sold Out Qty 1 included$3.00
BEARING 6204C3
10063
Sold Out Qty 1 included$11.00
GEAR HELICAL 46T
21350
Sold Out Qty 1 included$90.00
SCREW M6X10
10073
Sold Out Qty 4 included$0.00
BEARING RETAINER PLATE
21351
Sold Out Qty 1 included$7.00
CIRCLIP 25
21453
Sold Out Qty 1 included$3.00
BEAR 6305ST
10074
Sold Out Qty 1 included$18.00
PINION SHAFT 10T
21455
Sold Out Qty 1 included$283.00
SHIFT FORK LOW
21456
Sold Out Qty 1 included$110.00
GEAR INDICATOR SWITCH
21457
Sold Out Qty 1 included$87.00
SNAP RING
10075
Sold Out Qty 2 included$3.00
SHIFT ROD LOW
21459
Sold Out Qty 1 included$34.00
SHIFT ROD HIGH/REVERSE
21460
Sold Out Qty 1 included$37.00
THRUST WASHER
21461
Sold Out Qty 1 included$3.00
SPORCKET 12T
21483
Sold Out Qty 1 included$40.00
SHAFT REAR OUTPUTA(USE WITH SPEED SENSOR)
21463
Sold Out Qty 1 included$101.00
SHIM 1
21465
Sold Out Qty 1 included$3.00
DOWEL PIN
21104
Sold Out Qty 1 included$3.00
COVER
21468t
Sold Out Qty 1 included$96.00
DRAIN SCREW
21469
Sold Out Qty 1 included$4.00
WASHER
21470
Sold Out Qty 1 included$3.00
GEAR
21462
Sold Out Qty 1 included$283.00
O-RING 18X2.65
10122
Sold Out Qty 1 included$3.00
SPROCKET
21477
Sold Out Qty 1 included$36.00
SHAFT FRONT OUTPUT
21480
Sold Out Qty 1 included$97.00
SPORCKET 12T
21481
Sold Out Qty 1 included$40.00
CHAIN
21482
Sold Out Qty 1 included$24.00
O-RING 14X2.65
10123
Sold Out Qty 4 included$3.00
COLLAR
25511A
Sold Out Qty 1 included$13.00
O RING 50X1.5
25512
Sold Out Qty 1 included$3.00
SPEED SENSOR COVER
25513A
Sold Out Qty 1 included$17.00
SEAL30X40X5
27068
Sold Out Qty 1 included$7.00
BOLT M6X20
10010
Sold Out Qty 3 included$3.00
CLAMP 24
10164
Sold Out Qty 1 included$3.00
