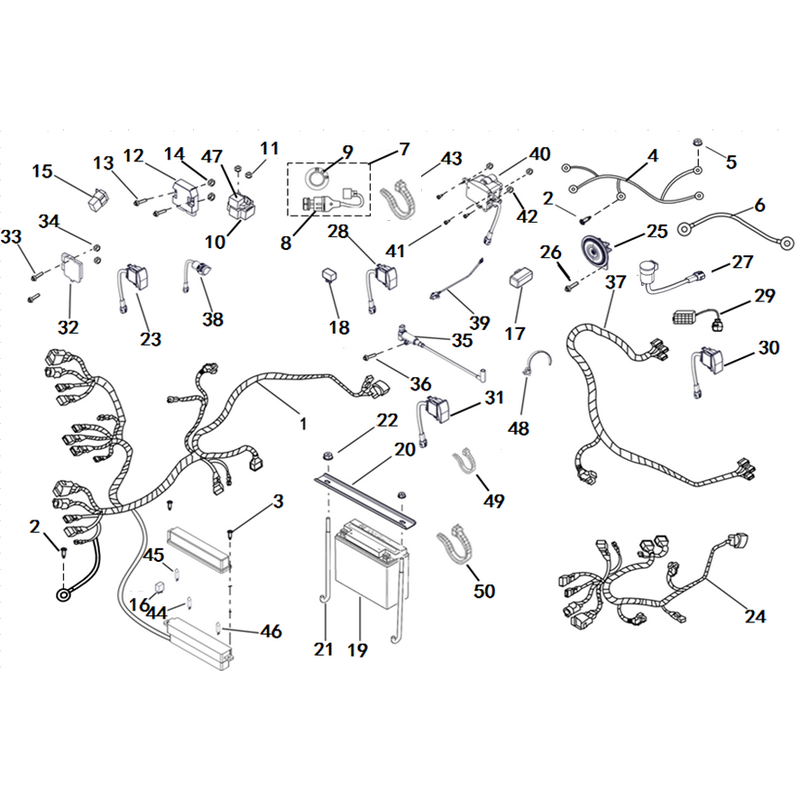

18 ELECTRICAL SYSTEM
Components
WIRING HARNESS
47695
Sold Out Qty 1 included$732.00
BOLT M6X16
11495
Sold Out Qty 3 included$3.00
Tapping Screw M5 ?16
48316
Sold Out Qty 5 included$3.00
CABLE OF STARTING 1
47696
Sold Out Qty 1 included$103.00
NUT M6
11520
Sold Out Qty 1 included$3.00
CABLE OF STARTING 2
47697
Sold Out Qty 1 included$103.00
Lock Assembly
48397
Sold Out Qty 1 included$79.00
Ignition Lock
48295
Sold Out Qty 1 included$79.00
LOCK DECAL
48551
Sold Out Qty 1 included$6.00
STARTER RELAY
71602
Sold Out Qty 1 included$43.00
NUT M6
11644
Sold Out Qty 2 included$4.00
Rectifier Regulator
71603
Sold Out Qty 1 included$202.00
BOLT M6X30
11496
Sold Out Qty 2 included$3.00
REVERSE GEAR WARNING
71976
Sold Out Qty 1 included$54.00
Auxiliary Relay
35083
Sold Out Qty 3 included$11.00
EFI Relay
71474
Sold Out Qty 1 included$17.00
Protector
26272
Sold Out Qty 2 included$15.00
BATTERY
70407a
Sold Out Qty 1 included$531.00
Plate For Battery
48327
Sold Out Qty 1 included$11.00
FASTENING ROD OF BATTERY
47699
Sold Out Qty 2 included$16.00
Nut M8
11145
Sold Out Qty 2 included$3.00
HIGH/LOW BEAM SWITCH
47700
Sold Out Qty 1 included$25.00
WIRING HARNESS FOR EFI
47701
Sold Out Qty 1 included$371.00
Horn
70404
Sold Out Qty 1 included$21.00
FLASHER RELAY ASSY
27438
Sold Out Qty 1 included$18.00
Turning Lights Switch
47072
Sold Out Qty 1 included$25.00
Wire, Turning Lights Switch
73439
Sold Out Qty 1 included$21.00
Horn Switch
48298
Sold Out Qty 1 included$55.00
Switch
73547
Sold Out Qty 1 included$49.00
ECU
27909
Sold Out Qty 1 included$626.00
BOLT M6X16
10183B
Sold Out Qty 2 included$3.00
NUT M6
11454
Sold Out Qty 2 included$3.00
Ignition Coil
70822D
Sold Out Qty 1 included$107.00
Bolt M6X40
11260
Sold Out Qty 1 included$3.00
TAILLIGHT TRANSITION LINE
47702
Sold Out Qty 1 included$36.00
Accessory Socket Assy For USB
36120
Sold Out Qty 1 included$54.00
Parking Switch
48293
Sold Out Qty 1 included$55.00
4WD SWITCH
47703
Sold Out Qty 1 included$56.00
Spring Nut M5
48314
Sold Out Qty 3 included$3.00
TIE
47704
Sold Out Qty 3 included$3.00
5 AMP Fuse
48360
Sold Out Qty 2 included$3.00
10 AMP Fuse
48361
Sold Out Qty 2 included$3.00
15 AMP Fuse
48362
Sold Out Qty 2 included$3.00
30 AMP Fuse
84275
Sold Out Qty 1 included$3.00
Tie
48294
Sold Out Qty 38 included$3.00
TIE
11334
Sold Out Qty 7 included$3.00
TIE 2
55016
Sold Out Qty 20 included$3.00
