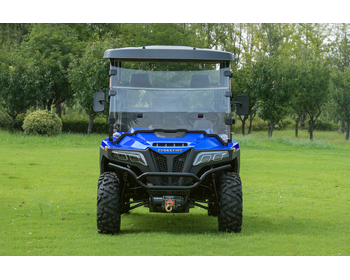

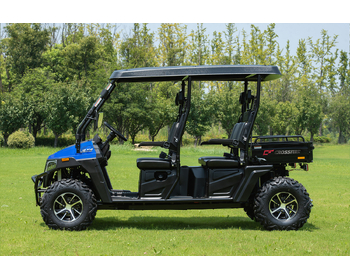

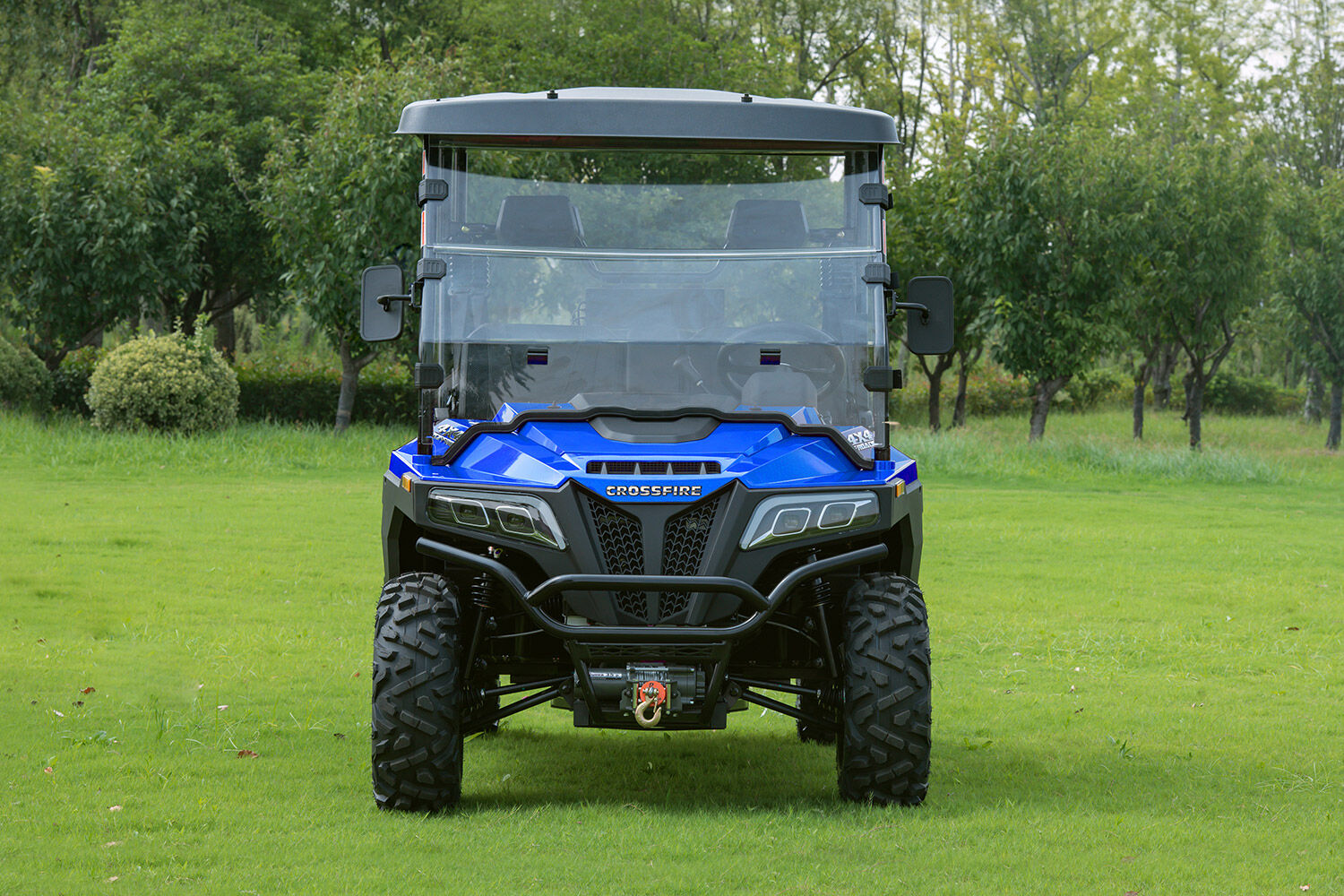

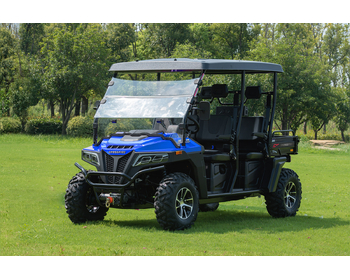

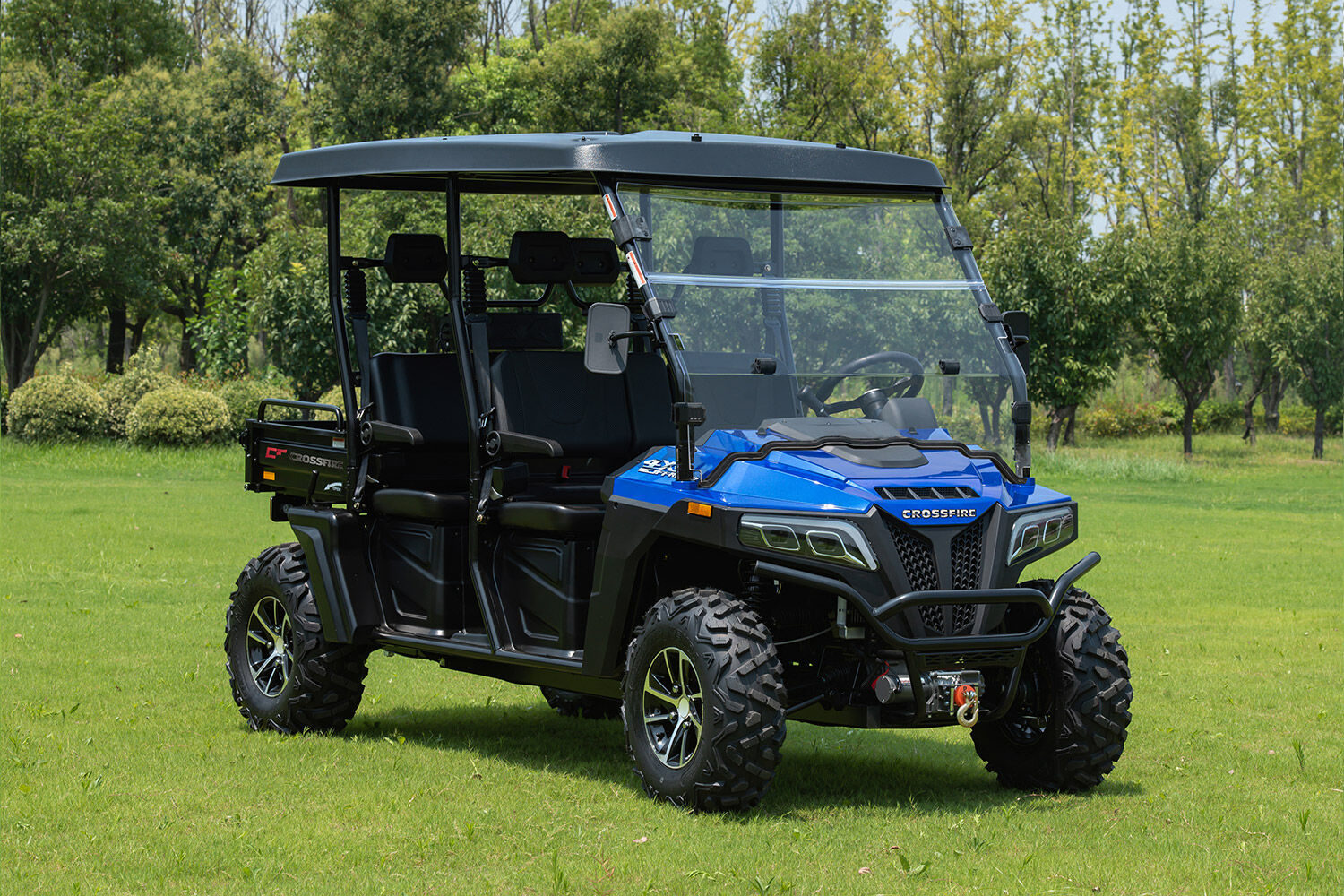

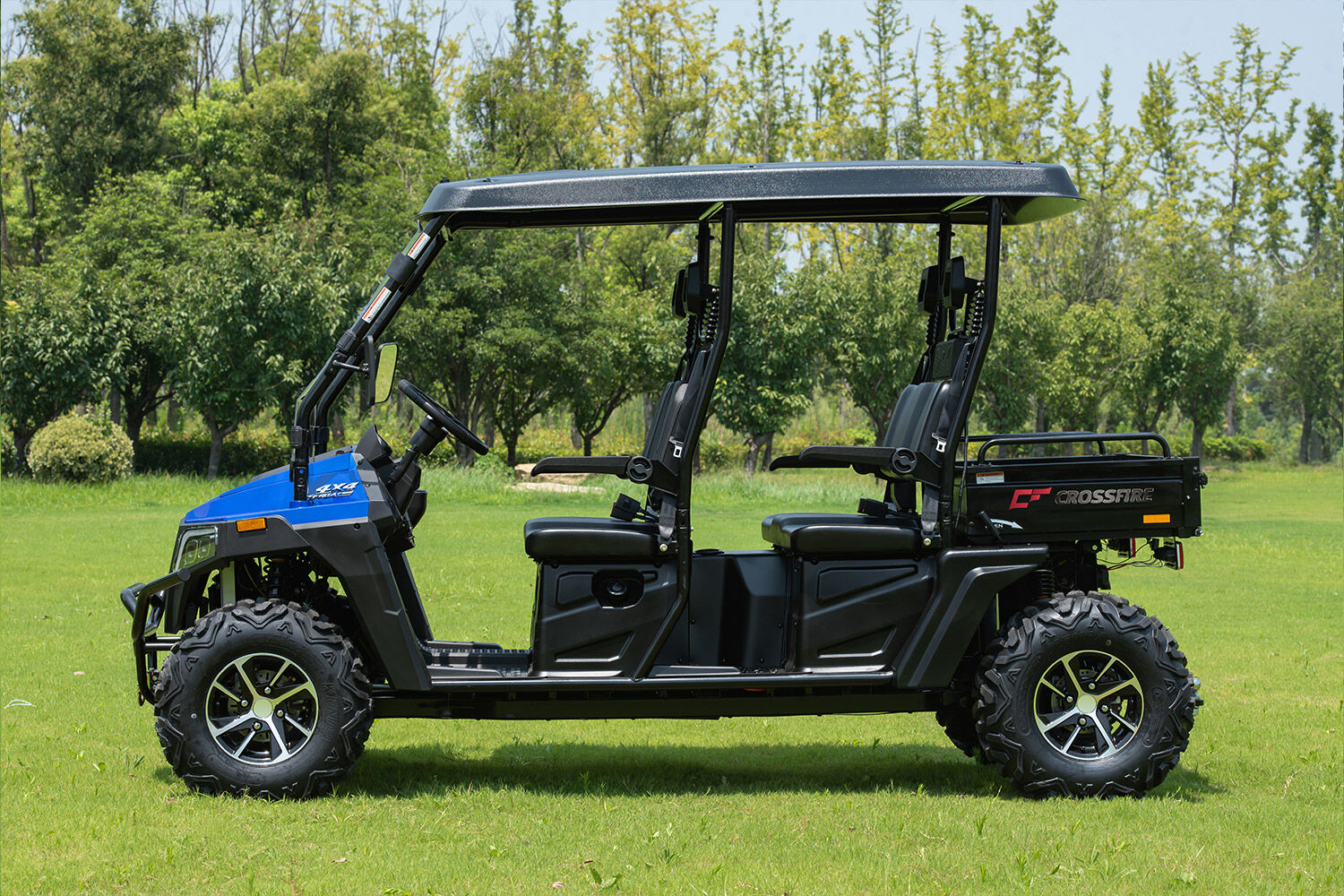

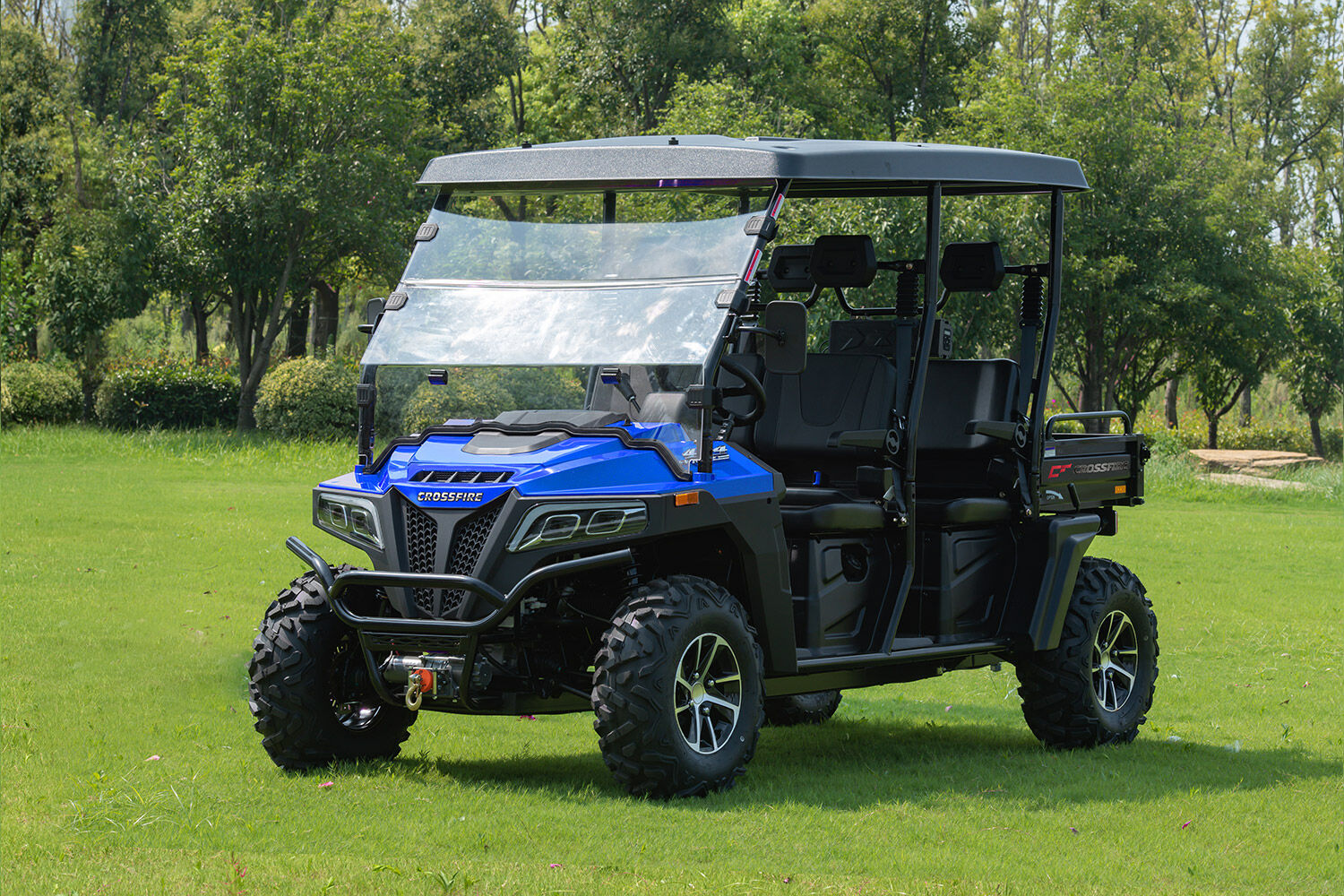

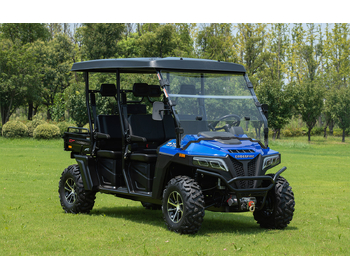

Introducing the E10 Crew, the ultimate electric vehicle for efficient and eco-friendly transportation in vineyards, stables, or municipal settings.

This 4-seater model features a powerful 10kW AC motor, 72V 140AH gel batteries, and a range of up to 40km*, making it perfect for group tours, staff transportation, or daily operations. With 4WD, power steering, and a rear differential lock, the E10 Crew effortlessly handles diverse terrains, from vineyard slopes to stable paths. The added convenience of a 10” big screen and reverse camera enhances safety and ease of use. Opt for the E10 Crew for a sustainable and versatile solution in agricultural, equestrian, or council applications.

WARRANTY

12 months up to 24 months*

** If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles 250cc and up. Please make sure you have proof of services.

Specifications

ENGINE
Engine PMSM (Permanent magnet synchronous motor)
Power 24HP
Rated Power 13.5HP
Torque 130N.m
Battery Capacity 72V 140AH*
Battery Type Lead acid battery
Charge Time 9-10h
Charging System ON-Board Charger
Drive Model 4WD, F/N/R, Rear differential with lock
Max Speed 52km/h
Max Range 20-40km*
Dump Bed Maximum Tipping Angle 35°
Dump Bed Capacity 100kg
Dump Bed Dimensions 700 × 1190 × 265mm
SUSPENSION / BRAKES / TYRES
Suspension Front Independent Mcpherson
Suspension Rear Independent Double A-Arm
Brakes Front Ventilated Hydraulic Disc
Brakes Rear Ventilated Hydraulic Disc
Tyres Front 25×8-12
Tyres Rear 25×10-12
DIMENSIONS
Dimensions (L x W x H) 3316 x 1440 x 1995mm
Wheelbase 2505 mm
Ground clearance 240 mm
Dry weight (With Lead acid batteries) 930kg
INCLUDED ACCESSORIES
Mesh Doors Included
Roof and windshield Included
Towbar Included

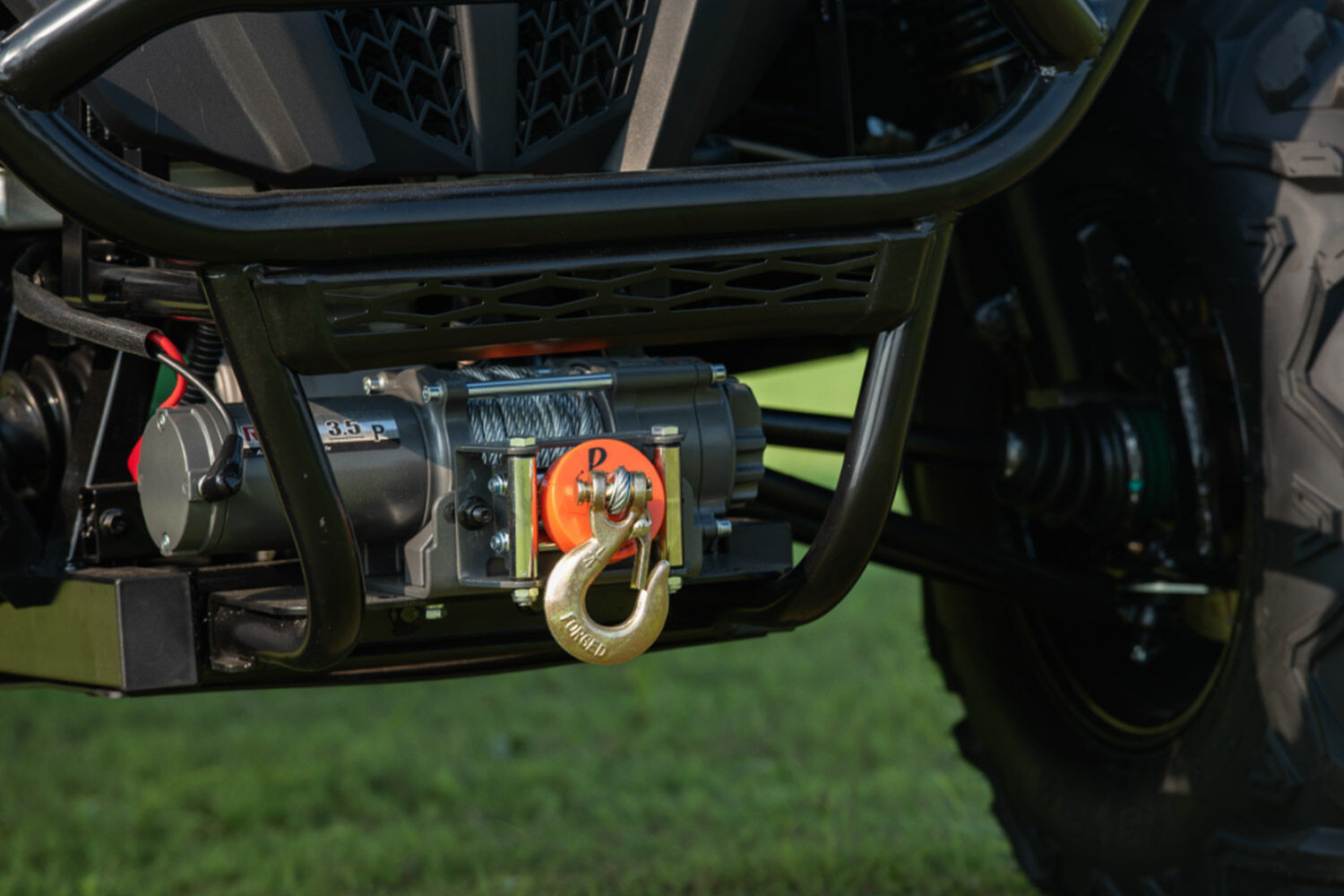

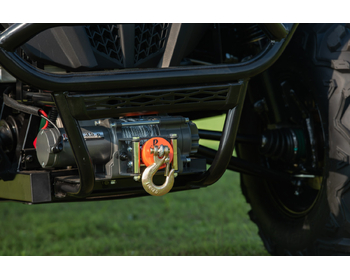

Winch Included
Aluminium rims Included
Rear Seating + 2 Included
Two Sided Mirror Included
Middle Cup Holder Included

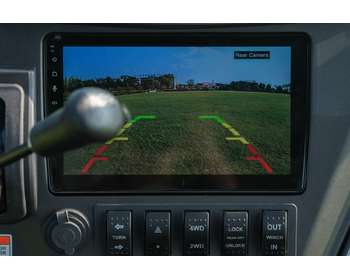

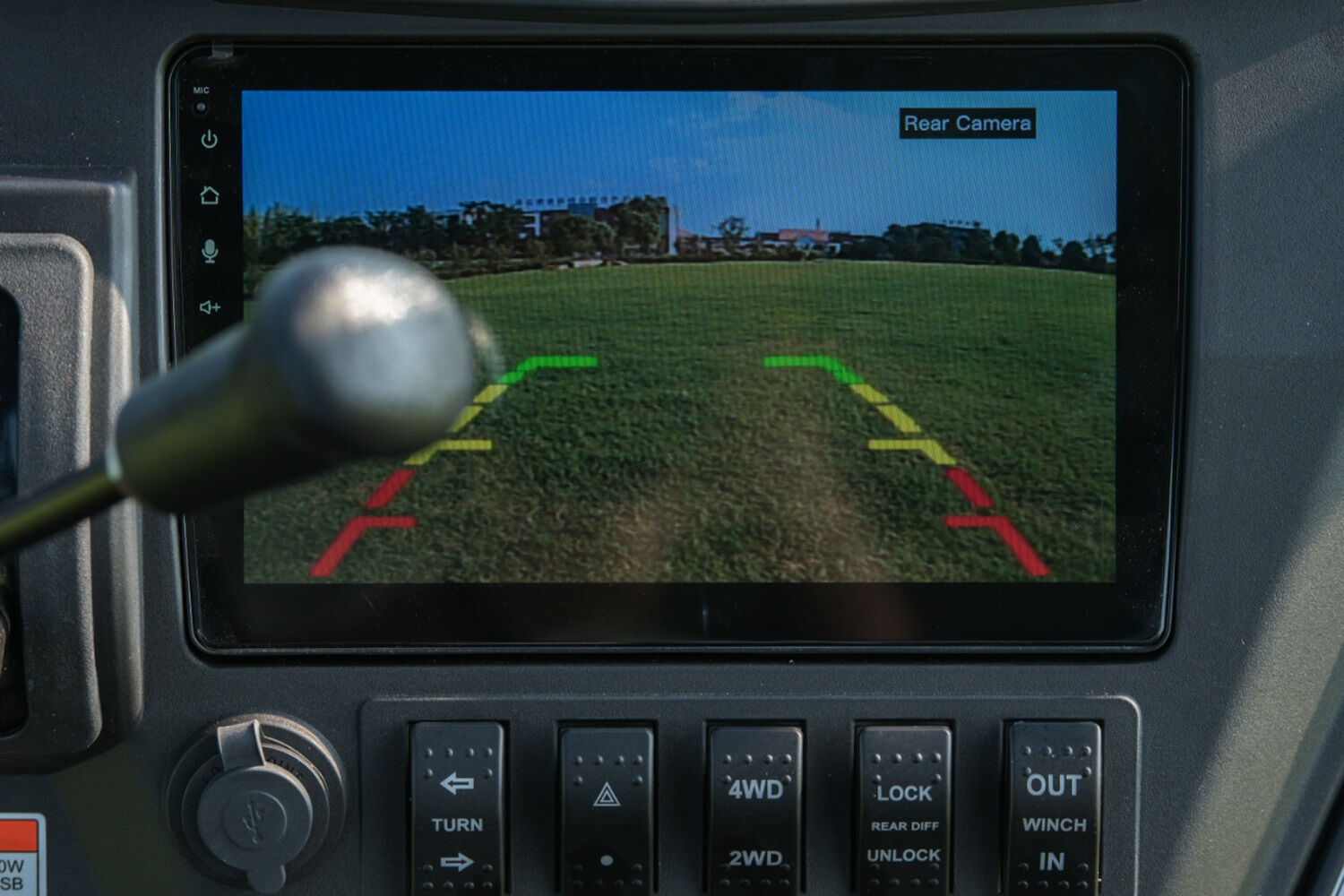

10″ Screen & Reverse Camera Included
