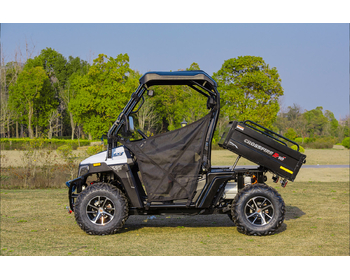

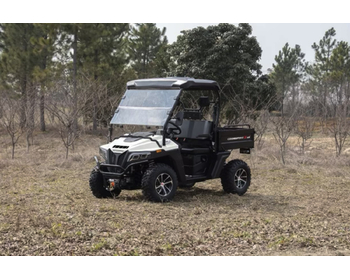

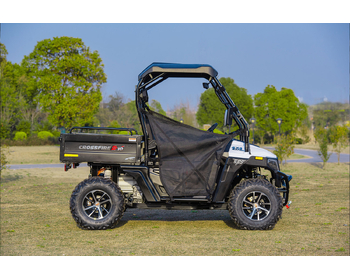

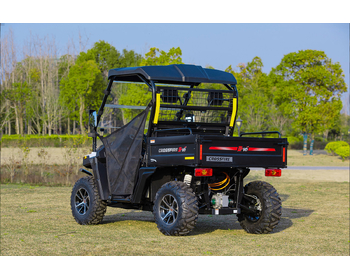

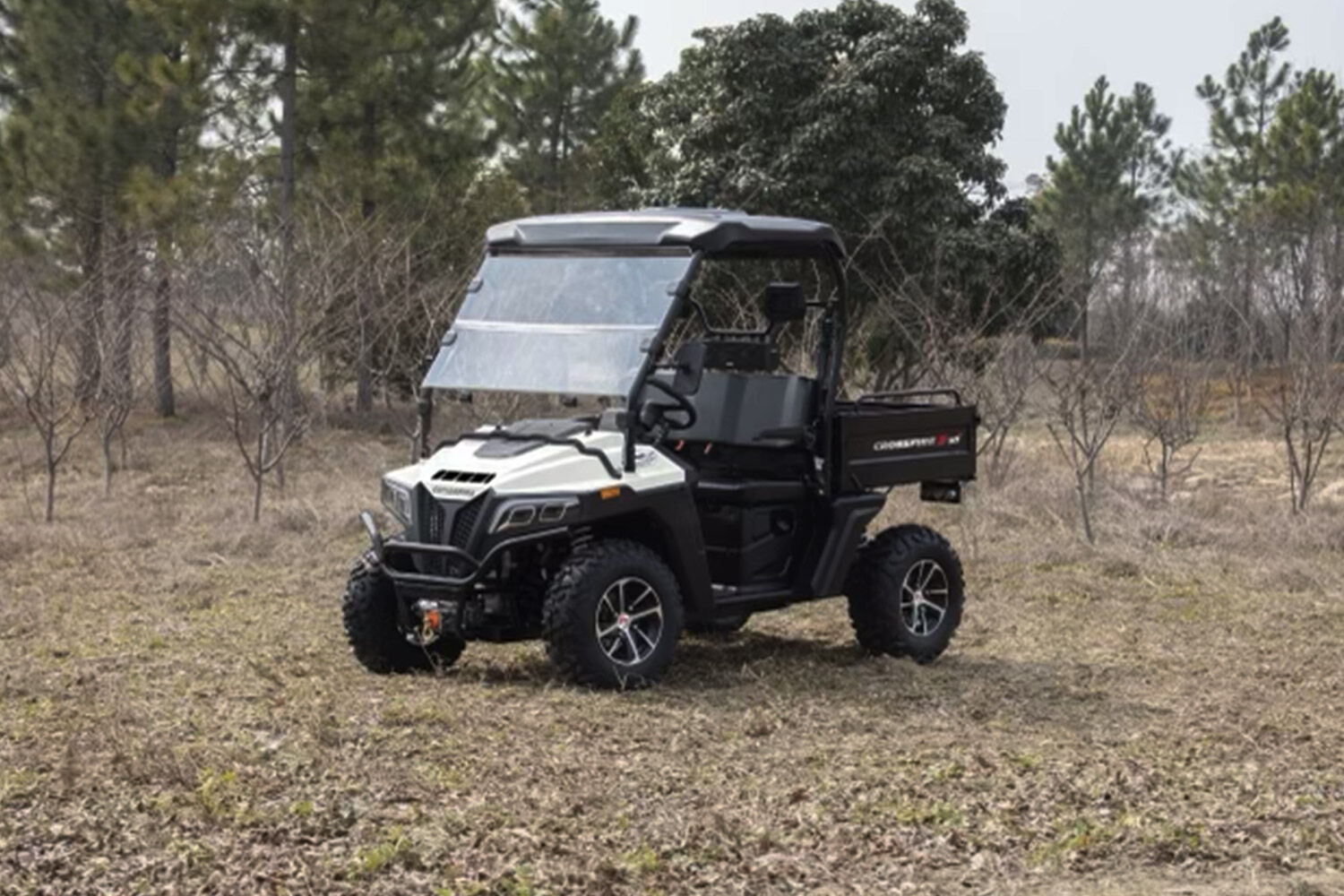

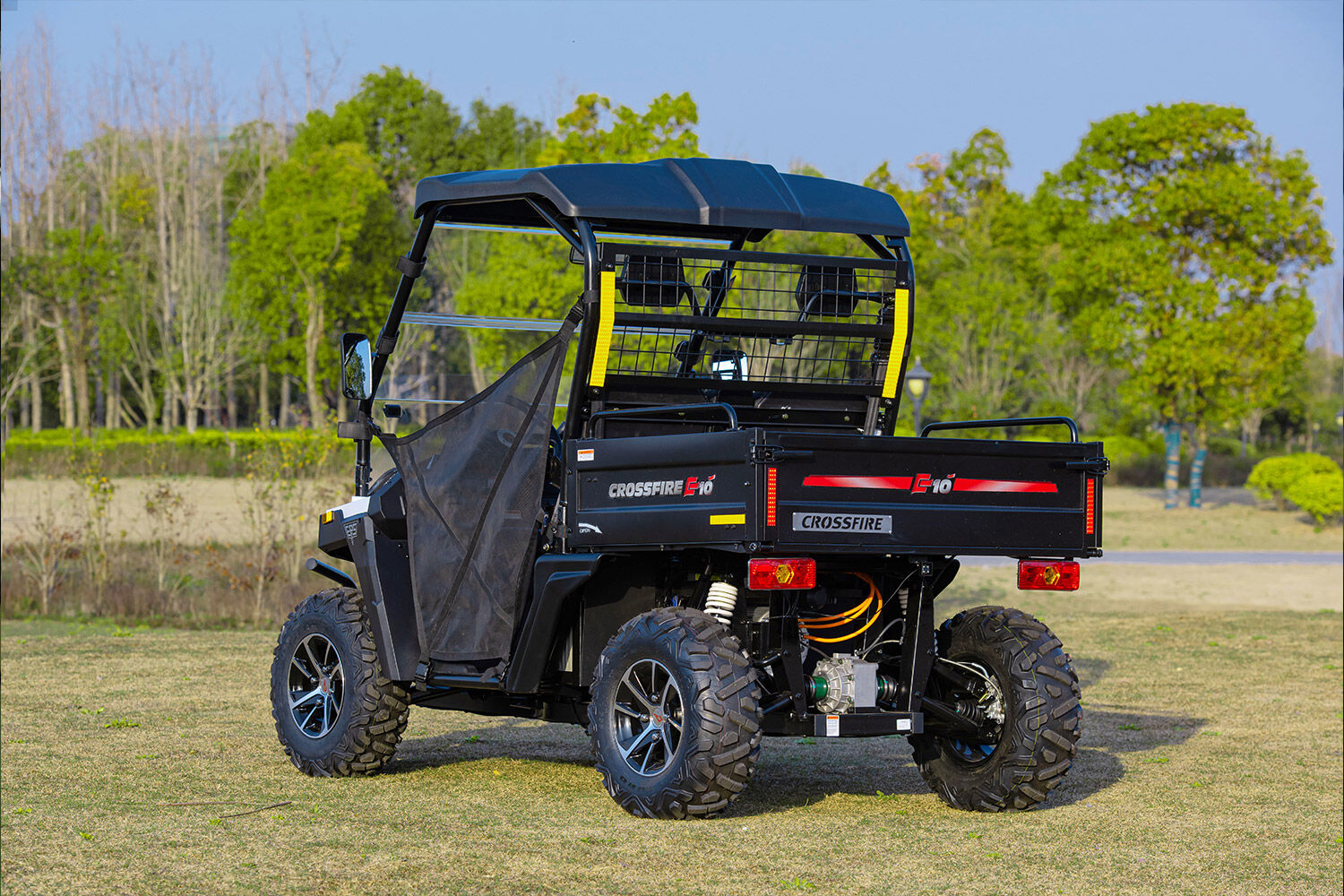

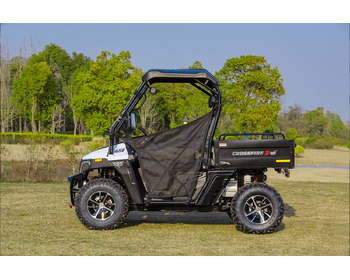

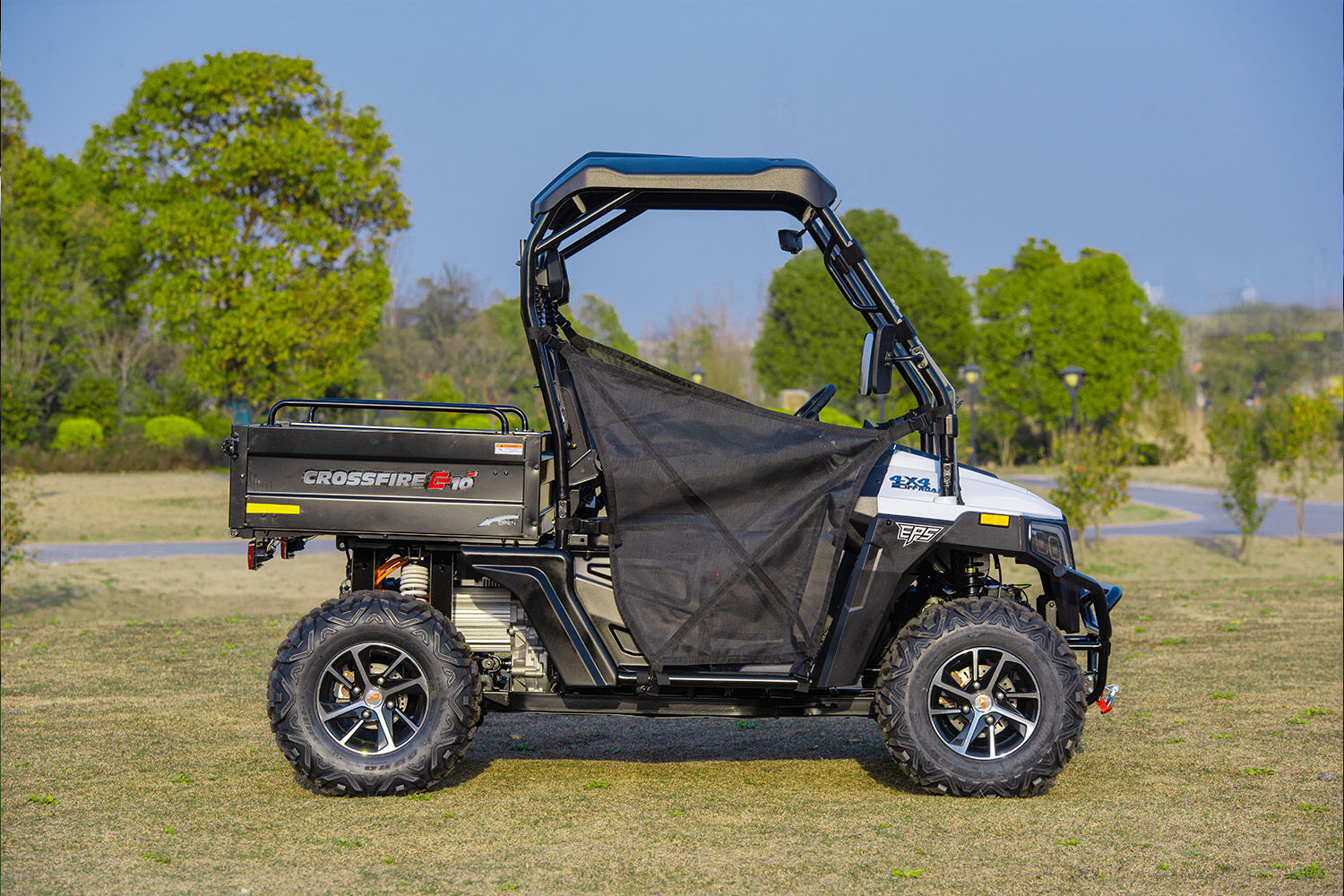

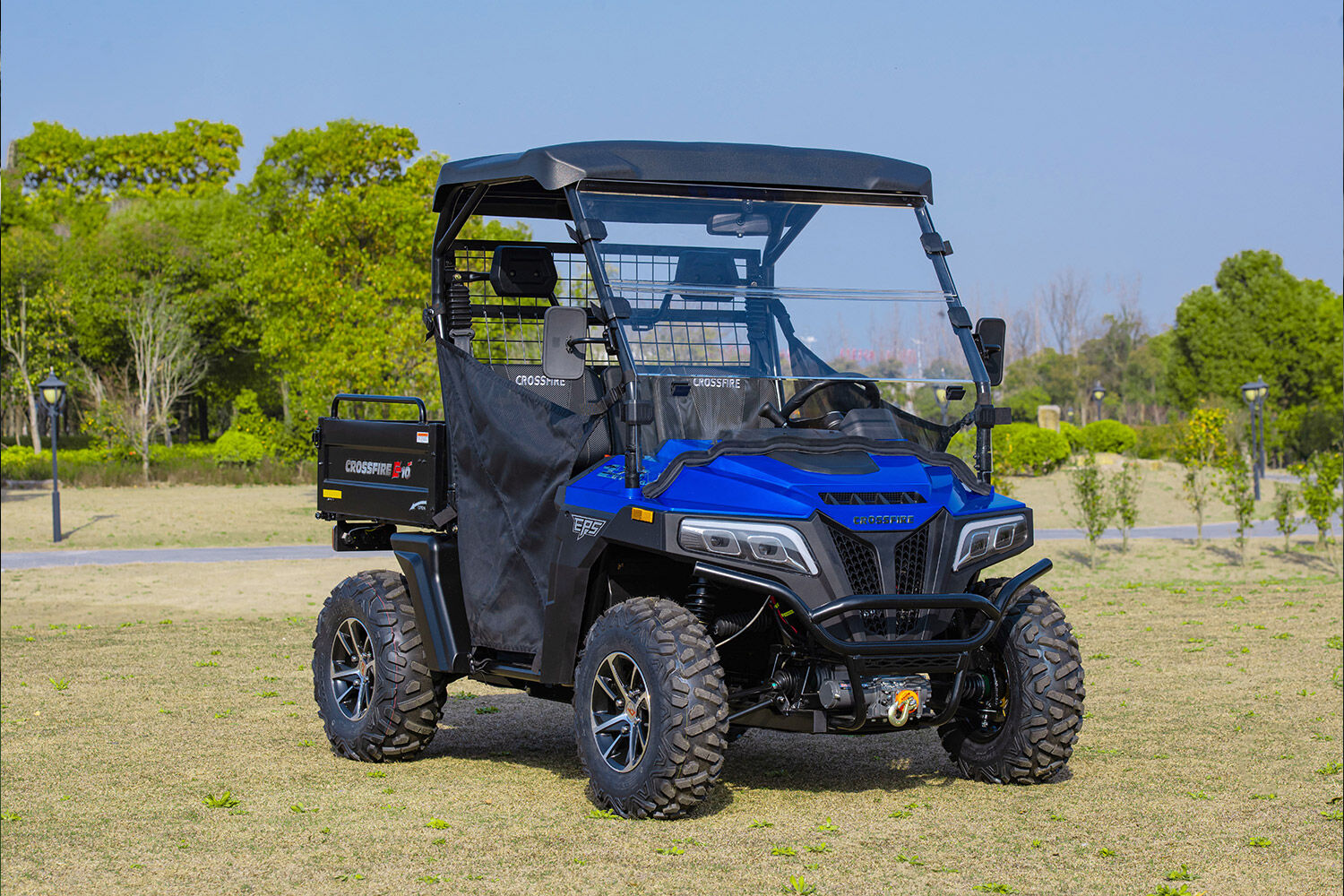

Discover the versatility and efficiency of the E10 electric vehicle, the perfect companion for vineyard management or stable operations.

Equipped with a robust 10kW AC motor and 72V 140AH gel batteries, the E10 offers exceptional power and a range of up to 20-50km on a single charge*. Its 4WD capability and rear differential lock ensure smooth navigation through uneven terrains, making it ideal for traversing vine rows or navigating stable grounds. The electric tipping tray adds convenience for transporting equipment, feed, or harvests. Embrace sustainable and reliable transportation with the E10, designed to meet the demands of agricultural and equestrian environments.

WARRANTY

12 months up to 24 months*

* If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles 250cc and up. Please make sure you have proof of services.

Specifications

ENGINE
Engine PMSM (Permanent magnet synchronous motor)
Power 24HP
Rated Power 13.5HP
Torque 130N.m
Battery Capacity 72V 140AH*
Battery Type Lead acid gel battery
Charge Time 9-10h
Charging System ON-Board Charger
Drive Model 4WD, F/N/R, Rear differential with lock
Max Speed 52km/h
Max Range 20-50km*

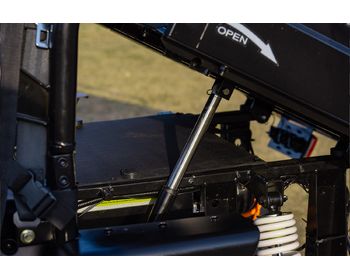

Dump Bed Maximum Tipping Angle 35°
Dump Bed Capacity 150kg
Dump Bed Dimensions 930 × 1270 × 380mm
SUSPENSION / BRAKES / TYRES
Suspension Front Independent Mcpherson
Suspension Rear Independent Double A-Arm
Brakes Front Ventilated Hydraulic Disc
Brakes Rear Ventilated Hydraulic Disc

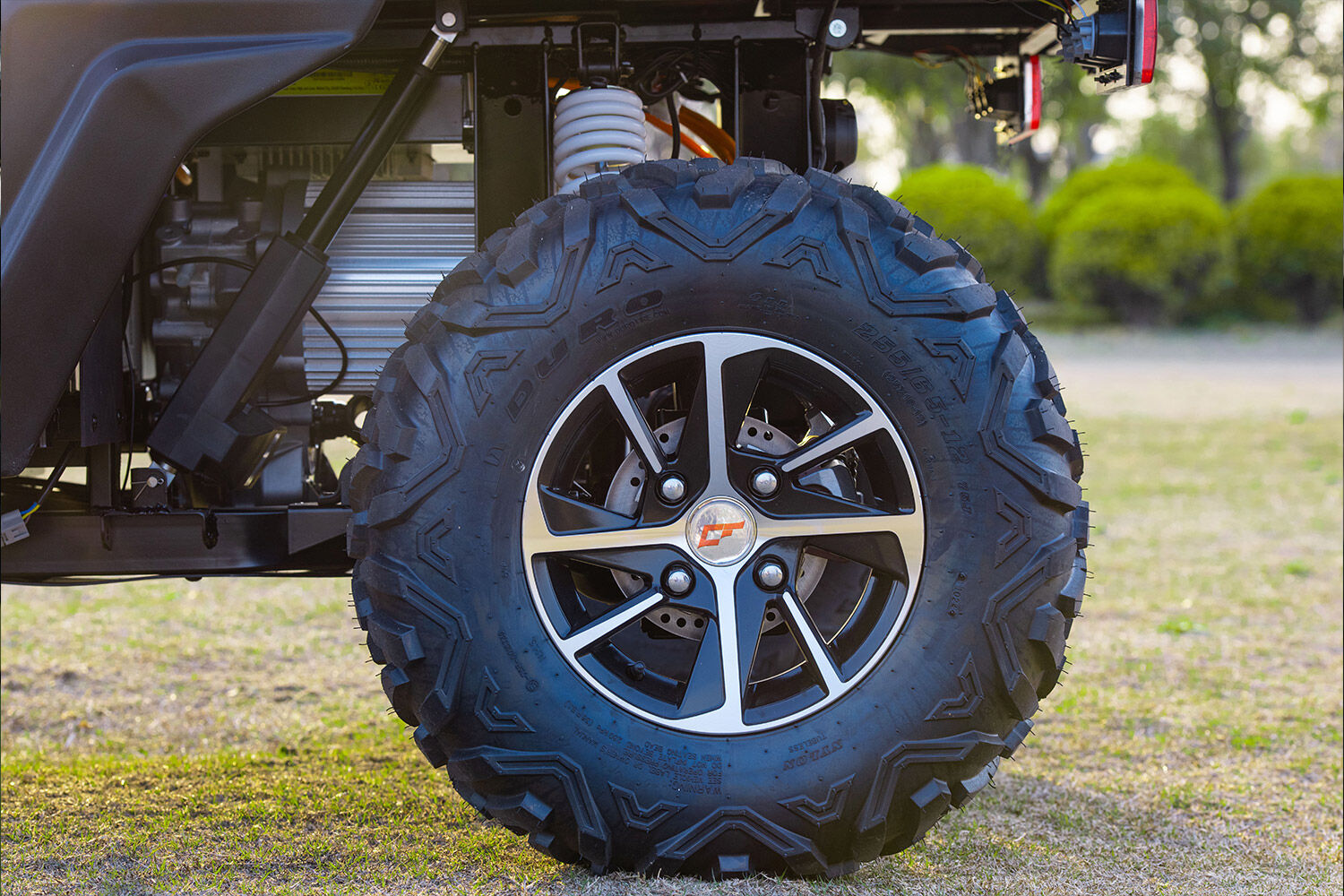

Tyres Front 25×8-12
Tyres Rear 25×10-12
DIMENSIONS
Dimensions (L x W x H) 2623 x 1440 x 2003mm
Wheelbase 1880 mm
Ground Clearance 240 mm
Dry Weight 770kg
INCLUDED ACCESSORIES

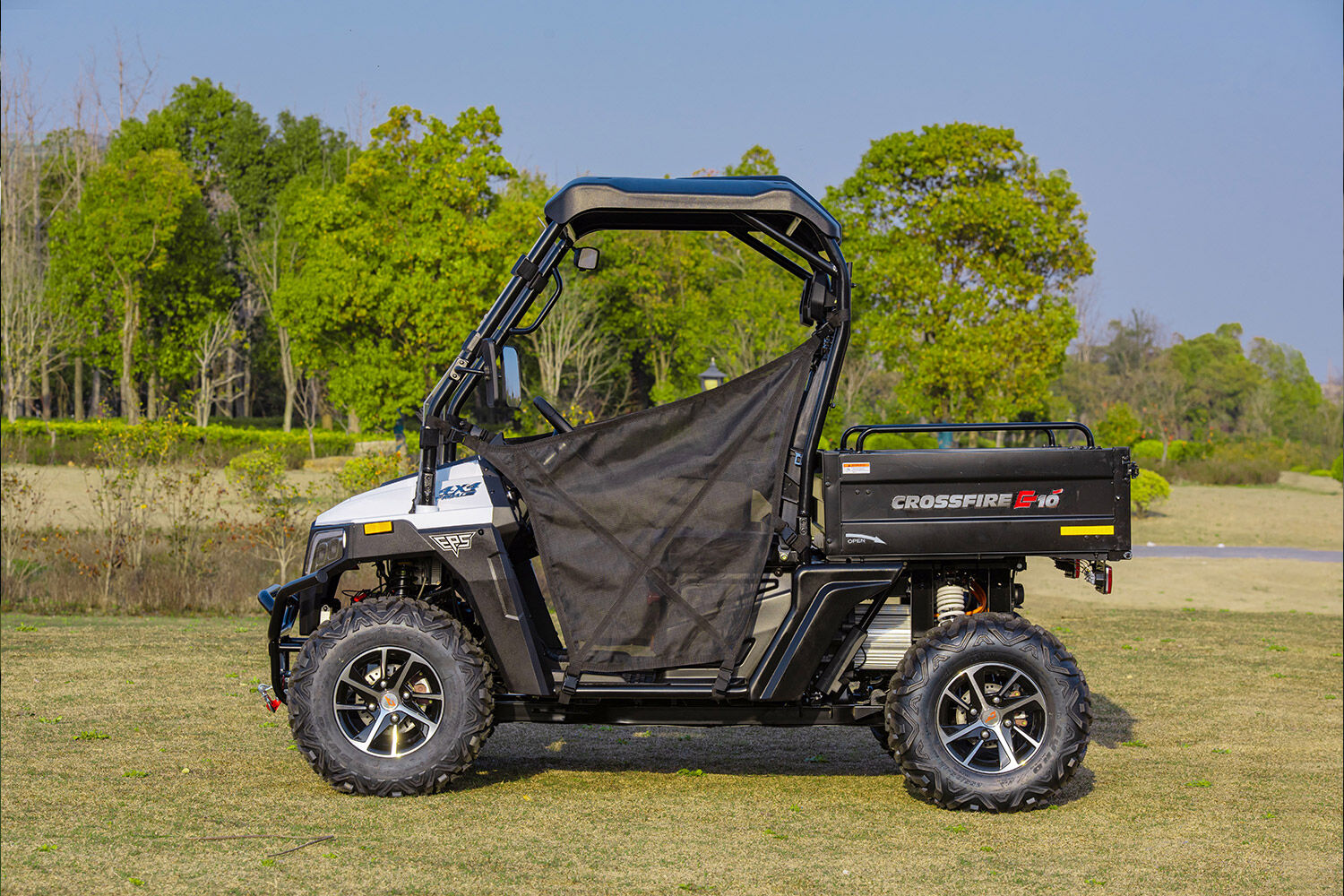

Mesh Doors Included
Roof and Windshield Included

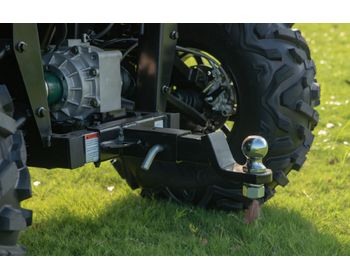

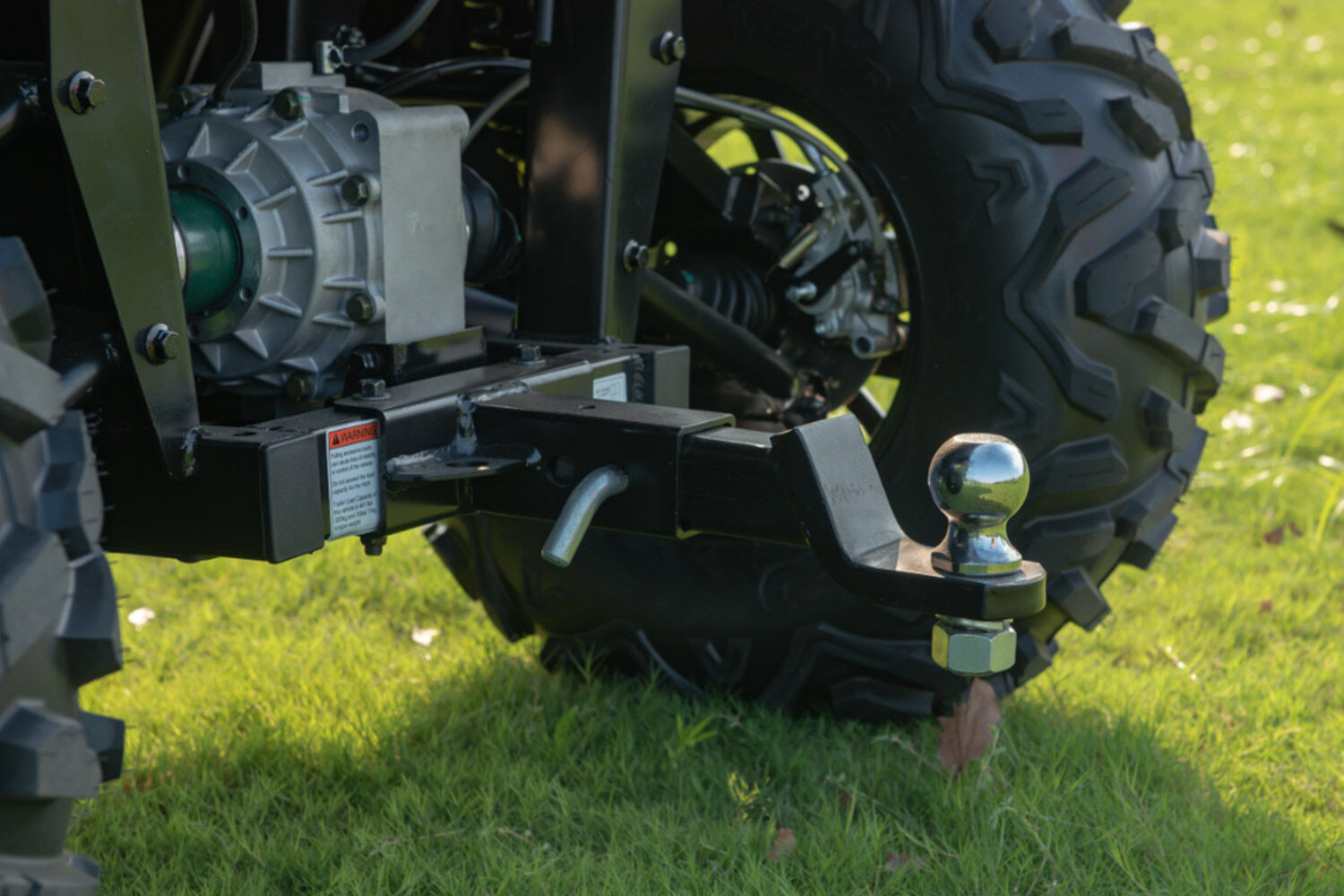

Towbar Included

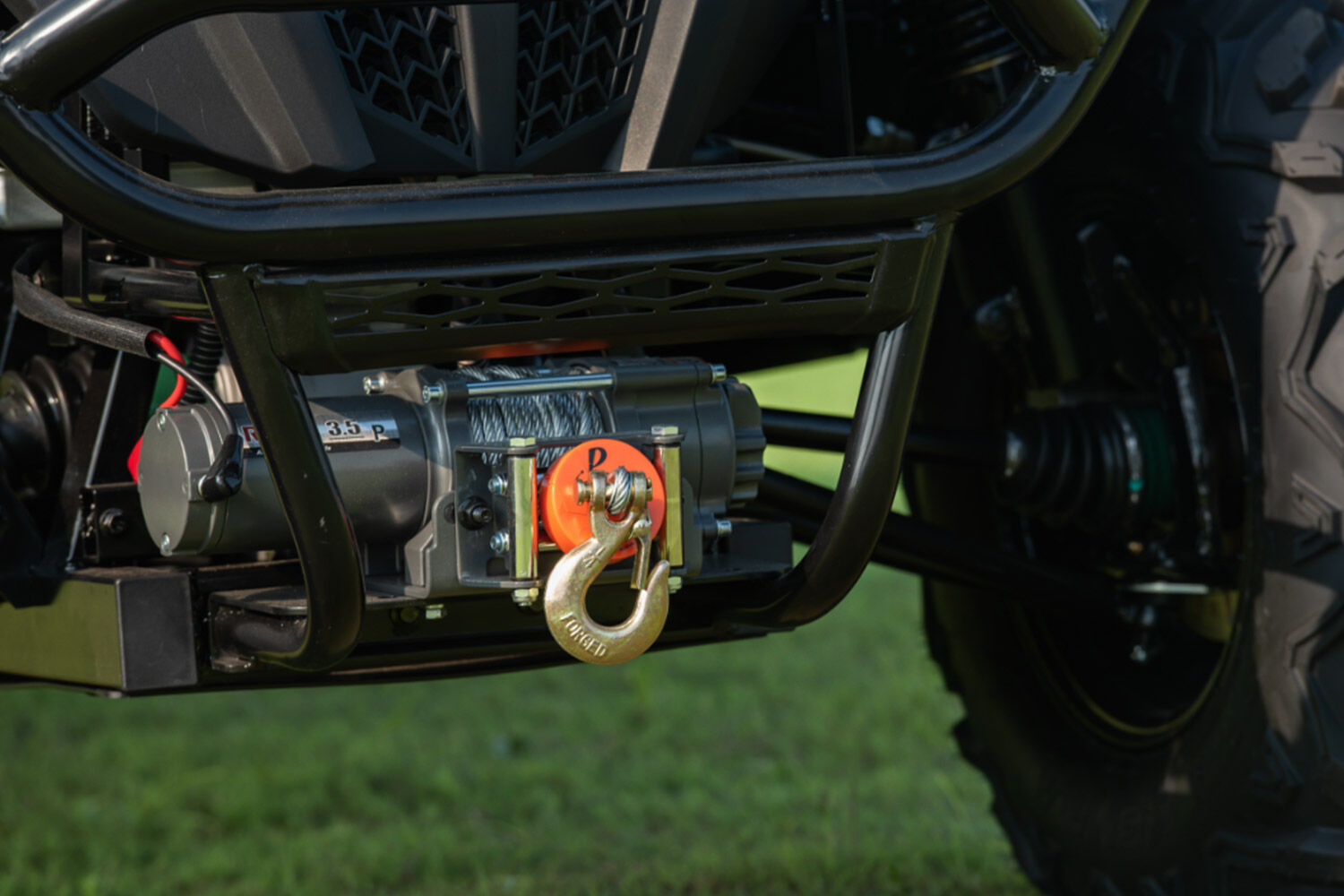

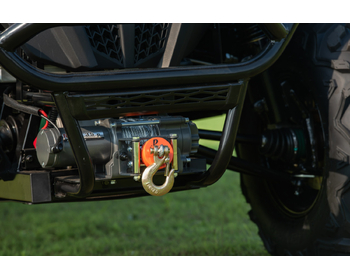

Winch Included
Aluminium Rims Included
Two Sided Mirror Included
Middle Cup Holder Included

Crossfire e10 Resources

Explore Crossfire e10 Resources: Brochures, User Manuals, Diagrams, and Technical Information

Need more information?

Contact Us
