Need support for a particular Crossfire Motorcycles product? Whether it be one of our Motorbikes, ATVs / UTVs or Go Karts, we have product brochures, user manuals, diagrams and other technical information to help you find what you’re looking for. Download the latest support information for your Crossfire.
Looking for support for non-current models?
Click here
CF50
Download the Crossfire CF50 Parts List- Download the Crossfire CF50 Wiring Diagram
- Download the Crossfire CF50 Engine Manual
- Download the Crossfire CF50 Brochure
- CF50– 50cc Engine
Engine Oil / Capacity: 500 mL 10W/40 Semi Synthetic 4T
Oil Capacity is an Approximation, please check using Dip Stick or Eyelet
Chain size and pitch – 420
Sprocket Ratio:420Pitch -10T Front 43 Rear
Carburetor: PZ14Q
Air filter size – Air box (not Pod)
Spark plug type – NGK D8EA
Battery type – CTX 5lbs
Download the
Download the
Download the
Download the
CF50– 50cc EngineCF70
- Download the Crossfire CF70 CF110 Brochure
CF110
- Download the Crossfire CF70 CF110 Brochure
- Download the Crossfire CF110 User Manual
- Chain size and pitch – 428
Front and rear sprocket – teeth – 15/41
Air filter size – 38mm
Spark plug type – NGK C7HSA
Battery type – 4Ah
Oil CF110 YX – 900 mL approximately
Engine Oil / Capacity: 900 mL 10W/40 Semi Synthetic 4T
Engine type – Manual
Download the CF125
- Download the Crossfire CF125 CF125s CF140 Parts Manual
- Download the Crossfire CF125 CF125s CF140 Brochure
CF125s
- Download the Crossfire CF125 CF125s CF140 Parts Manual
- Download the Crossfire CF125 CF125s CF140 Brochure
CF140
- Download the Crossfire CF125 CF125s CF140 Parts Manual
- Download the Crossfire CF125 CF125s CF140 Brochure
CF250
- Download the Crossfire CF250 Parts Manual
- Download the Crossfire CF250 Brochure
- Download the Crossfire CF250 User Manual
- Download the Crossfire CF250 Wiring Diagram
- Chain size and pitch – 520
Front and rear sprocket – teeth 13/42
Spark plug type – NGK D8EA
Battery type – 5AH
Oil: 10W-40 Summer
Tyres: Rear 90/100-16 Front 70/100-19
CFR250
- Download the Crossfire CFR250 Parts Manual
- Download the Crossfire CFR250 Engine Manual
- Stator = 8 coil, CDI= AC
- Download the Crossfire CFR250 Hour Meter Operation Guide
- Download the Crossfire CFR250 Brochure
- Chain size and pitch – 520
Front and rear sprocket – teeth 13/42
Air filter size – N/A
Spark plug type – NGK D8EA
Battery type – 7Ah
Download the
Kanga 90 – 2020
- Download the Crossfire Kanga 90 Brochure
- Lubricant grade: 15W/40-SE(summer), 10W/30-SF（winter)
Lubricant capacity: <1L 10w-30
Chain Size and pitch: 420 Pitch
Rear Sprocket: 37Tooth
Air filter size: Airbox
Spark Plug Type: NGK C7HSA
Battery Type: Lead-acid battery CTX4Lbs
Oil capacity: 900mL Approximately
Fuel Tank capcity 2.5L
Engine Type: Loncin 90cc automatic, 4 Stroke, Air

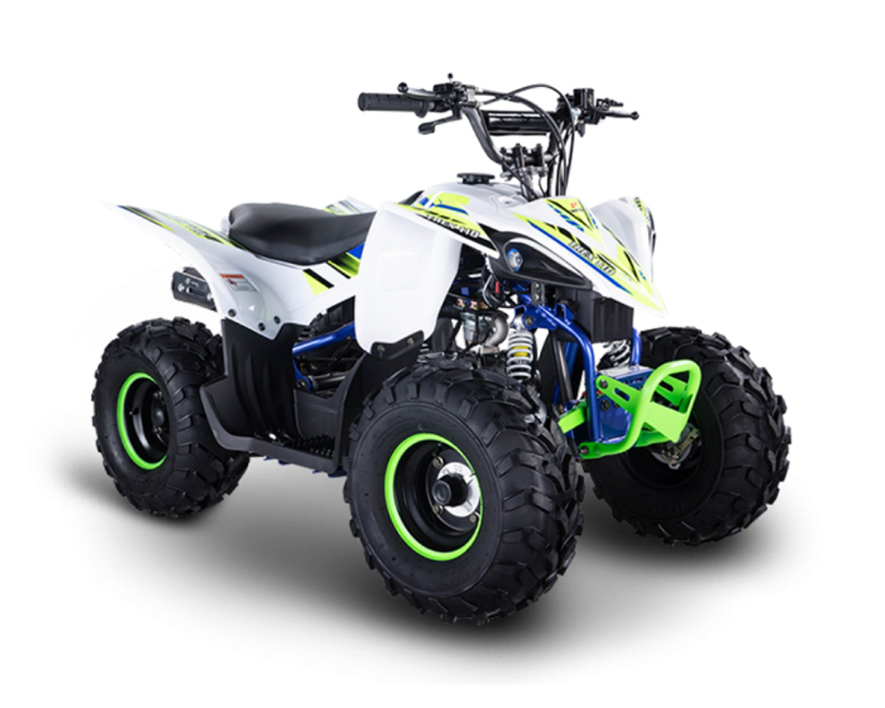

Trex 110
- Download the Crossfire Trex 110 Parts Manual
- Download the Crossfire Trex 110 Brochure
- Lubricant grade: 15W/40-SE(summer), 10W/30-SF（winter)
Lubricant capacity: <1L 10w-30
Chain Size and pitch: 428 Pitch
Rear Sprocket: 38Tooth
Air filter size: Airbox
Spark Plug Type: NGK C7HSA
Battery Type: Lead-acid battery CTX5Lbs
Oil capacity: 900mL Approximately
Fuel Tank capcity 2.5L
Engine Type: Loncin 110cc automatic, 4 stroke
Rover 125
- Download the Crossfire Rover 125 Parts Manual
- Download the Crossfire Rover 125 Engine Manual
- Download the Crossfire Rover 125 Owners Manual
- Download the Crossfire Rover 125 Wiring Diagram
- Download the Crossfire Rover 125 Brochure
- Chain size and pitch: 428H
Front and rear Sproket: 14/38
Air filter size: ¢38
Spark plug type: NGK C7HSA
Battery Type: 12V7AH
Oil Capacity: 800-900ml approximately
Engine type: Yinxiang 125cc semi-auto with reverse
Rear Hub Bearing specification
Bearing is 6006Z/￠30*￠55*13
Oil seal is ￠35*￠55*8
Mustang Evo 2 – 2015
- Download the Mustang Evo 2 Parts Manual
- Download the Mustang Evo 2 Engine Manual
- Stator = AC 8 Pole, CDI = AC
- Download the Crossfire Mustang Evo 2 & 3 Brochure 2015
- Download the Mustang Evo 2 User Manual
- Engine Oil: 10W40
Oil Capacity: 800-900ml
Oil Capacity is an Approximation, please check using Dip Stick or Eyelet
Chain size and pitch: 520H
Front and rear Sproket: 13/38
Air filter size: ¢45
Spark Plug: NGK DR8EA
Battery Type: 12V7AH
Engine type: ZS CB 250cc water cooled
Mustang Evo 3 – 2015
- Download the Mustang Evo 3 Parts Manual
- Download the Mustang Evo 3 Engine Manual
- Stator = AC 12 Pole, CDI = AC
- Download the Crossfire Mustang Evo 2 & 3 Brochure 2015
- Engine Oil: 10W40
Oil Capacity: 800-900ml
Oil Capacity is an Approximation, please check using Dip Stick or Eyelet
Chain size and pitch: 520H
Front and rear Sproket: 13/38
Air filter size: ¢45
Spark Plug: NGK DR8EA
Battery Type: 12V7AH
Oil Capacity: 800-900ml approximately
Engine type: ZS CB 250cc water cooled, 4 valve
X2
- Download the Crossfire X2 Parts Manual MY21
- Download the Crossfire X2 MY21 Brochure
X300
- Download the Crossfire X300 Brochure
X400
- Download the Crossfire x400 Parts Manual
- Download the Crossfire x400 Engine Manual
- Download the Crossfire x400 User Manual
- Download the Crossfire X400 Electrical Diagram
- Download the Crossfire X400 Brochure
- Type of Engine Oil and Transfer Case Oil: SAW 10W/40
Capacity of Engine Oil: 2300ml
Type of Differential Oil: GL-5 80W-90
Capacity of Front Differential Oil: 240ml
Capacity of Rear Differential Oil: 250ml
Spark Plug (NGK): DR8EA
Battery type: 12V/20Ah
Valve Clearness (Intake): 0.08-0.12
Valve Clearness (Exhaust): 0.12-0.16
Tyre Size Front: 25*8-12 Rear:25*10-12
Fuel pressure in PSI = 43 PSI
Territory 500
- Download the Crossfire Territory 500 Parts Manual
- Download the Crossfire Territory 500 Engine Manual
- Download the Crossfire Territory 500 Brochure
- Download the Crossfire Territory 500 Wiring Diagram
- Download the Crossfire Territory Service Manual – Part 1
Download the Crossfire Territory Service Manual – Part 2
Download the Crossfire Territory Service Manual – Part 3 - Download the Crossfire Territory Shock Absorbers Front and Rear Image
- Type of Engine Oil and Transfer Case Oil: SAW 10W/40
Capacity of Engine Oil: 2300ml
Type of Differential Oil: GL-5 80W-90
Capacity of Front Differential Oil: 240ml
Capacity of Rear Differential Oil: 250ml
Spark Plug (NGK): DR8EA
Valve Clearness (Intake): 0.08-0.12
Valve Clearness (Exhaust): 0.12-0.16
Fuel pressure in PSI = 43 PSI
E1
- Download the Crossfire E1 Parts Manual
- Download the Crossfire E1 Brochure
- Download the Crossfire E1 User Manual
- Download the Delta-Q Charger IC1200 Guide
E5
- Download the Crossfire E5 Owners Manual
- Download the Crossfire E5 Brochure
250GT
- Download the Crossfire 250UTV Parts Manual
- Download the Crossfire 250UTV Engine Manual
- Download the Crossfire 250GT Brochure
- Download the Crossfire 250GT Service Manual – Part 1
Download the Crossfire 250GT Service Manual – Part 2
Download the Crossfire 250GT Service Manual – Part 3 - Type of Engine Oil and Transfer Case Oil: SAW 10W/40
Capacity of Engine Oil: 1200ml
Spark Plug (NGK): DR8EA
Valve Clearness (Intake): 0.08-0.12
Valve Clearness (Exhaust): 0.01-0.14
Fuel pressure in PSI = 43 PSI
400GT
- Download the Crossfire 400GT Parts Manual MY21
- Download the Crossfire 400GT MY21 Brochure
- Fuel pressure in PSI = 36 PSI
Type of Engine Oil: SAE 15W/40SJ
Transfer Case Oil: SAE GL-4 85W/90
Capacity of Engine Oil: 1400ml
Capacity of Transfer Case Oil: 800ml
Type of Differential Oil: SAE GL-4 85W/90
Capacity of Front Differential Oil: 200ml
Capacity of Rear Differential Oil: 225ml
Spark Plug Type (NGK): DR8EA (NGK)
Valve Clearness (Intake): 0.1mm – 0.12mm
Valve Clearness (Exhaust): 0.13mm – 0.17mm
Wheel Size Front: 25*8-12
Wheel Size Rear: 25*10-12
500GT
- Download the Crossfire 500GT Brochure
- Download the Crossfire 500GT Parts Manual
- Download the Crossfire 500GT Engine Manual
- Download the Crossfire 500GT Wiring Diagram
- Download the Crossfire 500GT Main Relay Box Manual
- Download the Crossfire 500GT Service Manual – Part 1
Download the Crossfire 500GT Service Manual – Part 2
Download the Crossfire 500GT Service Manual – Part 3
Download the Crossfire 500GT Service Manual – Part 4 - Type of Engine Oil and Transfer Case Oil: SAW 10W/40
Capacity of Engine Oil: 2300ml
Type of Differential Oil: GL-5 80W-90
Capacity of Front Differential Oil: 240ml
Capacity of Rear Differential Oil: 250ml
Spark Plug (NGK): DR8EA
Valve Clearness (Intake): 0.08-0.12
Valve Clearness (Exhaust): 0.12-0.16
Fuel pressure in PSI = 43 PSI
Tech note:
Download the Crossfire 500GT – Top Dead Centre Marking & Timing Guide
800GTs
- Download the Crossfire 800GTs Brochure
- Download the Crossfire 800GTs Parts Manual
- Download the Crossfire 800GTs Engine Parts Manual
- Type of Engine Oil and Transfer Case Oil: 10W/40
Capacity of Engine Oil: 2300ml
Type of Differential Oil: 80W/90
Capacity of Front Differential Oil: 280ml
Capacity of Rear Differential Oil: 200ml
Spark Plug (NGK): DCPR7E
Valve Clearness (Intake): 0.08-0.10mm
Valve Clearness (Exhaust): 0.10-0.12mm
Fuel pressure in PSI: 0.3MPa
Go-Kart 100
- Download the Crossfire Go Kart 100 Assembly Manual
- Download the Crossfire Go Kart 100 Owners Manual
- Download the Crossfire Go-Kart 100 / Blazer 200R Brochure
- Type of Engine Oil and Transfer Case Oil: 10W/30
Capacity of Engine Oil: 0.35L
Spark Plug (NGK): E6TC
Valve Clearness (Intake): 0.15mm
Valve Clearness (Exhaust): 0.2mm
Tyre Size: AT145/70-6
Chain Size pitch: Specification: 35HH-A-140, Pitch: 9.525mm
Blazer 200R
- Download the Crossfire Blazer 200R Parts Manual
- Download the Crossfire Blazer 200R Engine Manual
- Download the Crossfire Go-Kart 100 / Blazer 200R Brochure
- Download the Blazer 200R Owners Manual
- Type of Engine Oil: 4T SF10W-40
Capacity of Engine Oil: 550ML
Spark Plug (NGK): BPR6ES
Front and Rear Sprocket: 10:46
Airbox Size: Φ26 (Airbox)
Battery Type: 12V 9Ah
Engine Size: JF168FLH
Engine Bore x Stroke: 68x54mm
Valve Clearness (Intake): 0.08-0.12mm
Valve Clearness (Exhaust): 0.15-0.20mm
Wheel Size: Front: 16×6-8 Rear: 16×7-8
Chain Size: 420, Pitch: 12.7mm
